Home > Products

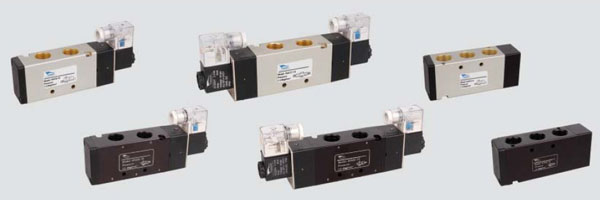

Solenoid Valve
4V 400&4A 400
Add to cart
Symbol

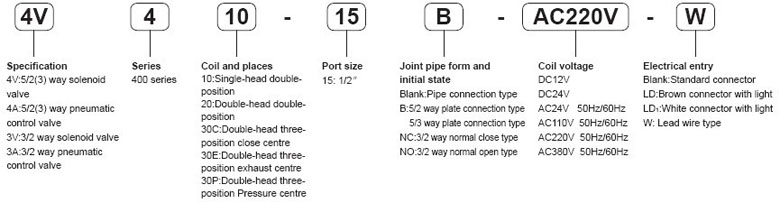

Ordering code



Specifications
Model
4V410-15
4V420-15
4V430C-15
4V430E-15
4V430P-15
4A410-15
4A420-15
4A430C-15
4A430E-15
4A430P-15
Position and way NO.
5/2 way
5/3 way
Effective area
50mm2(CV=2.79)
30mm2(CV=1.68)
Model
3V410-15
3V420-15
3A410-15
3A420-15
Position and way NO.
3/2 way
Effective area
50mm2(CV=2.79)
Port size
Air inlet=Air outlet=Exhaust=G1/2″
Fluid
40 micron fi ltered air
Operation
Inside pilot type
Operating pressure
0.15~0.8MPa
Max. proof pressure
1.2MPa
Temperature
5~50oC
Allowable voltage
±10% of rated voltage
Power consumption
AC: 4.5VA
Coil insulation & protection grade
Class F. IP65
Electrical entry
Lead wire or connector
Highest action frequency
5 cycle / second
Shortest excitation time
0.05 second

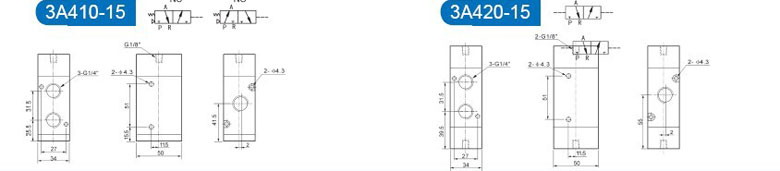

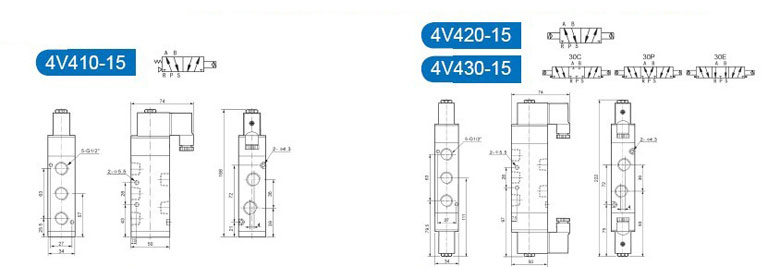

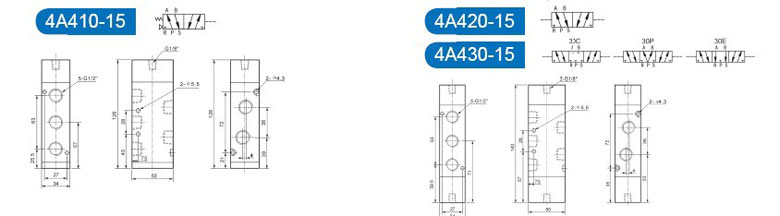

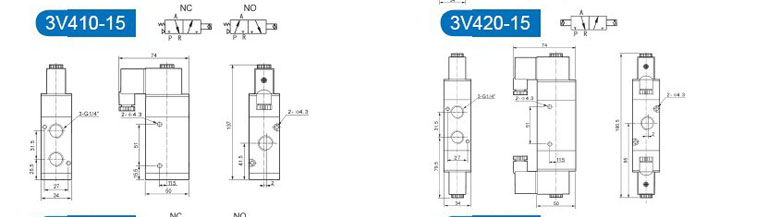

Dimensions
