| Fluid |
Air
|
| Proof pressure |
1.5MPa(15kgf/cm2)
|
| Max. operating pressure |
1.0MPa(10kgf/cm2)
|
| Ambient and fl uid temperature |
5~60oC
|
| Nominal fi ltration rating |
5μm 25μm 50μm
|
| Bowl material |
PC K1300
|
| Bowl guard |
AF1000~2000(Not Available) AF3000~5000(Available)
|
| Model |
Specifi cations |
Accessories |
Drain function |
Model of AF
series with
auto drain |
*Rated fl ow
(L/min) |
**Port size
(G) |
Oil capacity
(CM3) |
Weight
(kg) |
Bracket |
| AF1000-M5 |
110 |
M5 |
4 |
0.07 |
- |
Manual drain |
|
| AF2000-01 |
750 |
1/8 |
15 |
0.19 |
B240 |
|
| AF2000-02 |
1/4 |
|
| AF3000-02 |
1500 |
1/4 |
20 |
0.29 |
B340 |
a.Air shutoff drain
b.Manual drain |
|
| AF3000-03 |
3/8 |
|
| AF4000-03 |
4000 |
3/8 |
45 |
0.55 |
B440 |
AF4000-3D |
| AF4000-04 |
1/2 |
AF4000-4D |
| AF4000-06 |
6000 |
3/4 |
45 |
0.58 |
B540 |
AF4000-6D |
| AF5000-06 |
7000 |
3/4 |
130 |
1.08 |
B640 |
AF5000-6D |
| AF5000-10 |
1 |
AF5000-10D |
*Under the circumstance that the inlet pressure is 0.7MPa (7.1kgf/cm2)and the set pressure is 0.5MPa(5.1kgf/cm2)
** Rc and NPT port sizes are available.

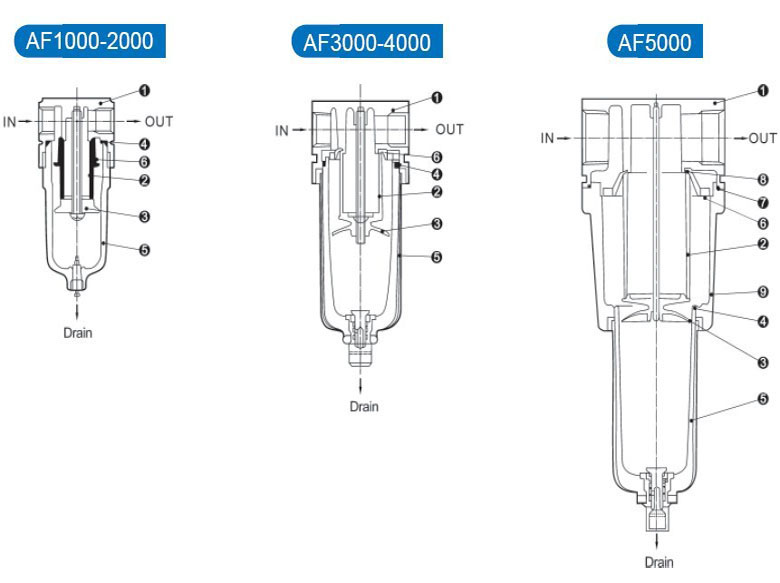

Construction
.jpg)
Component parts
|
NO.
|
Description
|
Material
|
|
1
|
Body
|
Aluminum die-cast
|
|
2
|
Filter element
|
Brass
|
|
3
|
Baffle
|
POM
|
|
4
|
Bowl O-ring
|
NBR
|
|
5
|
Bowl assembly(bowl guard)
|
Polycarbonate(Cold rolled steel)
|
|
6
|
Whirlwind blade
|
POM
|
|
7
|
O-ring
|
NBR
|
|
8
|
Sealing washer
|
NBR
|
|
9
|
Housing
|
Aluminum die-cast
|
|

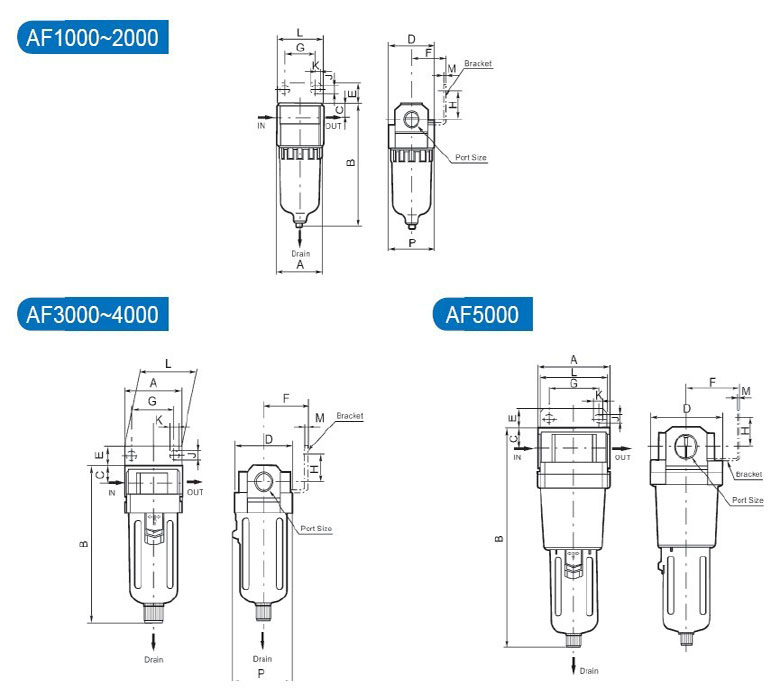

Model
|
Port Size G
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
P
|
|
AF1000
|
M5
|
25
|
66
|
7
|
25
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
26.5
|
|
AF2000
|
1/8~1/4
|
40
|
97.5
|
11
|
40
|
17
|
30
|
27
|
22
|
5.4
|
8.4
|
40
|
2.3
|
40
|
|
AF3000
|
1/4~3/8
|
53
|
132.5
|
14
|
53
|
16
|
41
|
40
|
23
|
6.5
|
8
|
53
|
2.3
|
56
|
|
AF4000
|
3/8~1/2
|
70
|
168.5
|
18
|
70
|
17
|
50
|
54
|
26
|
8.5
|
10.5
|
70
|
2.3
|
73
|
|
AF4000-06
|
3/4
|
75
|
172.5
|
20
|
70
|
14
|
50
|
54
|
25
|
8.5
|
10.5
|
70
|
2.3
|
73
|
|
AF5000
|
3/4~1
|
90
|
247.5
|
24
|
90
|
23
|
66.5
|
66
|
35
|
11
|
13
|
90
|
3.2
|
90
|
|
|
