| Structure type |
Compact type, diaphragm type
|
| Material |
Al-alloy based body nylon handle NBR seals
|
| Port size |
G1/4 G3/8 G1/2 G1
|
| Weight |
0.400 0.470 0.460 1.680 kg
|
| Pressure gauge port size |
G1/8 G1/8 G1/8 G1/4
|
| Installation type |
Tube and board connection ,bracket or wall installation
|
| Operating temperature |
0~50oC (0.1MPa)
|
| Surface coat |
Painted
|
| Inlet pressure |
0~1.6MPa
|
| Outlet pressure |
0.05~1.0MPa
|
|

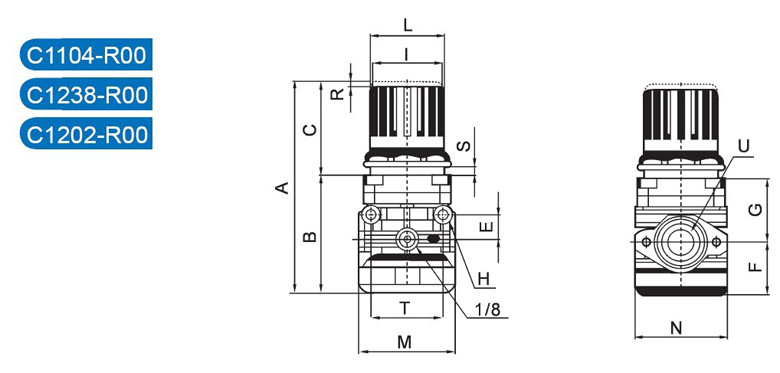

Model
|
A
|
B
|
C
|
E
|
F
|
G
|
H
|
I
|
L
|
M
|
N
|
R
|
S
|
T
|
U
|
|
C104-D00
|
94
|
55
|
39
|
11
|
28
|
28
|
5
|
28
|
30×1.5
|
45
|
45
|
3
|
0-6
|
35
|
G1/4
|
|
C238-D00
|
134
|
75
|
59
|
15
|
34
|
41
|
6
|
45
|
47×1.5
|
62
|
59
|
3.5
|
0-9
|
46
|
G3/8
|
|
C202-D00
|
134
|
75
|
59
|
15
|
34
|
41
|
6
|
45
|
47×1.5
|
62
|
59
|
3.5
|
0-9
|
46
|
G1/2
|
|

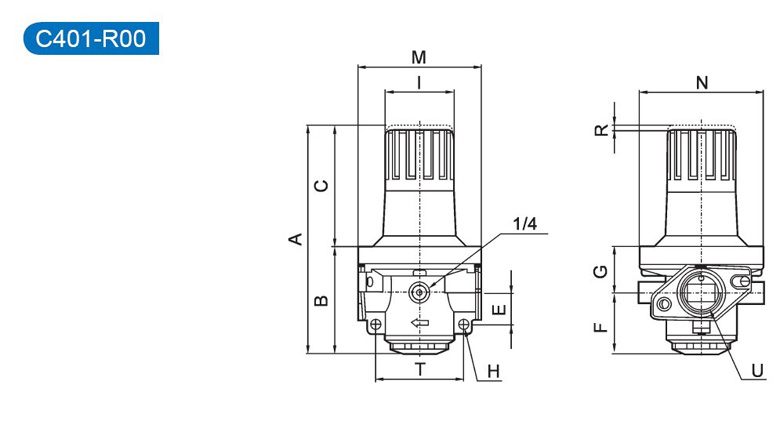

C401-D00
|
203.5
|
95.5
|
108
|
28
|
54
|
40
|
8
|
60
|
-
|
110
|
110
|
5
|
-
|
78
|
G1
|
|
|
