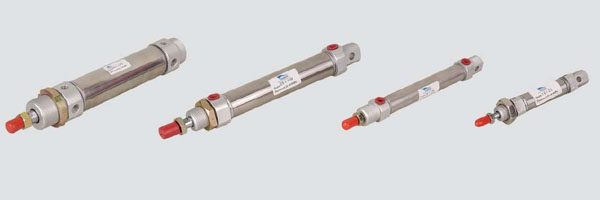

DSNU/DSNUL Series ISO6432 Stainless Steel Mini Cylinder |
|  |
 |
Add to cart |
|
Symbol |
|
|
Character
Non touched reaction testing accord with
ISO6432 standard cylinder.φ8กซφ25mm
|

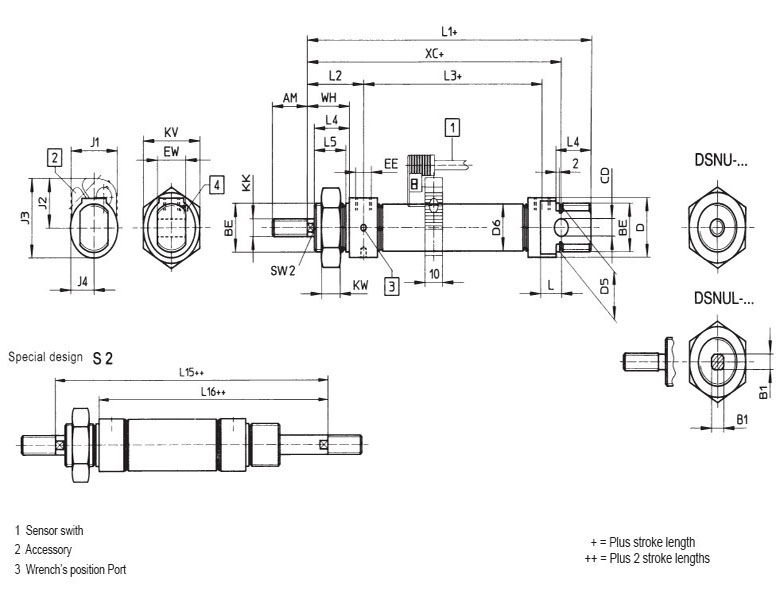

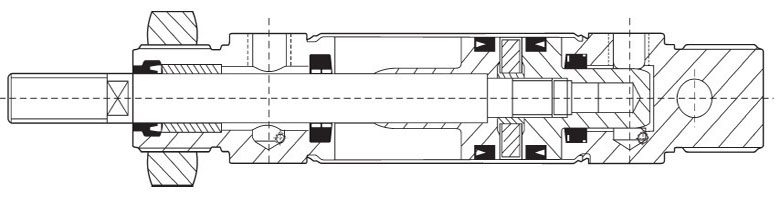

Sectional view
|
Bore / Symbol
|
AM
|
B1 f8
|
BE
|
φCD
|
φD h9
|
φD5
|
φD6
|
EE
|
EW
|
J1
|
J2
|
J3
|
J4
|
|
8
|
12
|
-
|
M12×1.25
|
4
|
15
|
12
|
9.3
|
M5
|
8
|
20.4
|
16.5
|
23.2
|
13.9
|
|
10
|
12
|
-
|
M12×1.25
|
4
|
15
|
12
|
11.3
|
M5
|
8
|
22
|
18.2
|
25.9
|
13.8
|
|
12
|
16
|
5.5
|
M16×1.5
|
6
|
20
|
16
|
13.3
|
M5
|
12
|
22
|
20
|
28.6
|
11
|
|
16
|
16
|
5.5
|
M16×1.5
|
6
|
20
|
16
|
17.3
|
M5
|
12
|
22.5
|
22.5
|
33.2
|
11
|
|
20
|
20
|
7
|
M22×1.5
|
8
|
27
|
22
|
21.3
|
G1/8
|
16
|
26.5
|
22.5
|
35.3
|
13
|
|
25
|
22
|
9
|
M22×1.5
|
8
|
27
|
22
|
26.5
|
G1/8
|
16
|
31.5
|
25
|
40.2
|
16
|
|
Bore / Symbol
|
KK
|
KV
|
KW
|
L
|
L1
|
L2
|
L3
|
L4
|
L5
|
L15
|
L16
|
SW2
|
WH
|
XC
|
|
8
|
M4
|
19
|
6
|
6
|
78
|
22
|
34
|
12
|
10
|
78
|
62
|
-
|
16
|
64
|
|
10
|
M4
|
19
|
6
|
6
|
78
|
22
|
34
|
12
|
10
|
78
|
62
|
-
|
16
|
64
|
|
12
|
M6
|
24
|
8
|
9
|
89
|
28
|
38
|
17
|
15
|
94
|
72
|
5
|
22
|
75
|
|
16
|
M6
|
24
|
8
|
9
|
95
|
28
|
44
|
17
|
15
|
100
|
78
|
5
|
22
|
82
|
|
20
|
M8
|
32
|
11
|
12
|
112
|
32
|
51.6
|
20
|
18
|
116
|
92
|
7
|
24
|
95
|
|
25
|
M101.25
|
32
|
11
|
12
|
119.5
|
36
|
53.1
|
22
|
20
|
125.5
|
97.5
|
9
|
28
|
104
|
|
|
