Home > Products
Cylinder

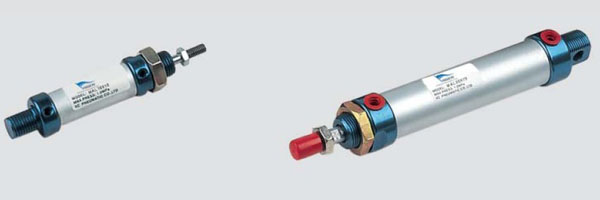

MAL Series Aluminum Alloy Mini Cylinder
Add to cart
Symbol

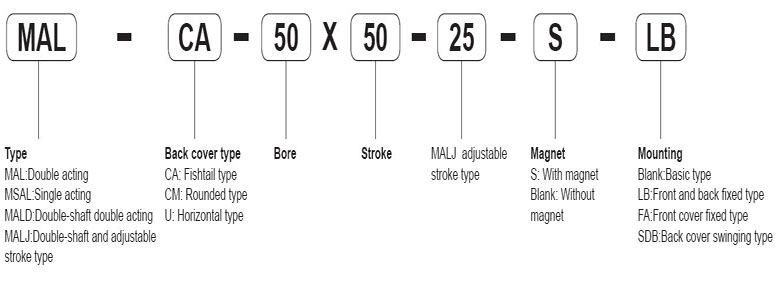

Ordering code



Specifications
  Bore (mm)
16
20
25
32
40
  Operation
Double acting or single acting
  Fluid
Air
  Mounting
Basic FA LB SDB
  Operating pressure
1.0~9.0 Kgf/cm2
  Ensured proof pressure
13.5 Kgf/cm2
  Operating temperature
0~70oC
  Operating piston speed
50~800 mm/s
  Cushioning
Rubber bumper
  Port size
M5×0.8
G1/8″

Bore / Symbol
A
A1
A2
B
C
D
D1
E
F
G
H
I
J
K
16
104
104
90
38
52
15
15
24
14
11
16
10
5
M6×1
20
131
122
110
40
70
21
12
28
12
16
20
12
6
M8×1.25
25
135
128
114
44
70
21
14
30
14
16
22
17
6
M10×1.25
32
141
128
114
44
70
27
14
30
14
16
22
17
6
M10×1.25
40
165
152
138
46
92
27
14
32
14
22
24
17
7
M12×1.25



Bore / Symbol
L
M
P
Q
R
R1
S
U
V
W
X
AR
AX
AY
16
M16×1.5
8
6
12
13
13
6
20
6
/
M5
7
24
27.5
20
M22×1.5
10
8
16
19
12
12
29
8
6
G1/8
7
33
29
25
M22×1.5
12
8
16
19
14
12
34
10
8
G1/8
7
33
29
32
M24×2.0
12
10
16
25
14
15
39.5
12
10
G1/8
8
37
32
40
M30×2.0
12
12
20
25
14
15
49.5
16
14
G1/4
9
47
41

Symbol
A
A1
A2
B
C
D
D1
E
F
G
H
I
J
Bore / Stroke
0~50
51~100
0~50
51~100
0~50
51~100
0กซ50
51กซ100
20
131
156
122
147
110
135
40
70
95
21
12
28
12
16
20
12
6
25
135
160
128
153
114
139
44
70
95
21
14
30
14
16
22
17
6
32
141
166
128
153
114
139
44
70
95
27
14
30
14
16
22
17
6
40
165
190
152
177
138
163
46
92
117
27
14
32
14
22
24
17
7
Bore / Symbol
K
L
M
P
Q
R
R1
S
U
V
W
X
AR
AX
AY
20
M8×1.25
M22×1.5
10
8
16
19
12
12
27
8
6
G1/8
7
33
29
25
M10×1.25
M22×1.5
12
8
16
19
14
12
30
10
8
G1/8
7
33
29
32
M10×1.25
M24×2.0
12
10
16
25
14
15
35
12
10
G1/8
8
37
32
40
M10×1.25
M30×2.0
12
12
20
25
14
15
41.6
16
14
G1/8
9
47
41




Bore/Symbol A  A1  B  C  E  F  G  H  I  J  K
20 131 122 40 70 28 12 16 20 12 6 M8×1.25
25 135 128 44 70 30 14 16 22 17 6 M10×1.25
32 141 128 44 70 30 14 16 22 17 6 M10×1.25
40 165 152 46 92 32 14 22 24 17 7 M12×1.25




Bore/Symbol  L  M  U  V  W  X  AR  AX  AY  T
20 M22×1.5  10 29 8 6 G1/8  7 33 29 19
25 M22×1.5  12 34 10 8 G1/8  7 33 29 21
32 M24×2.0  12 39.5 12 10 G1/8  8 37 32 21
40 M30×2.0  12 49.5 16 14 G1/4  9 47 41 21

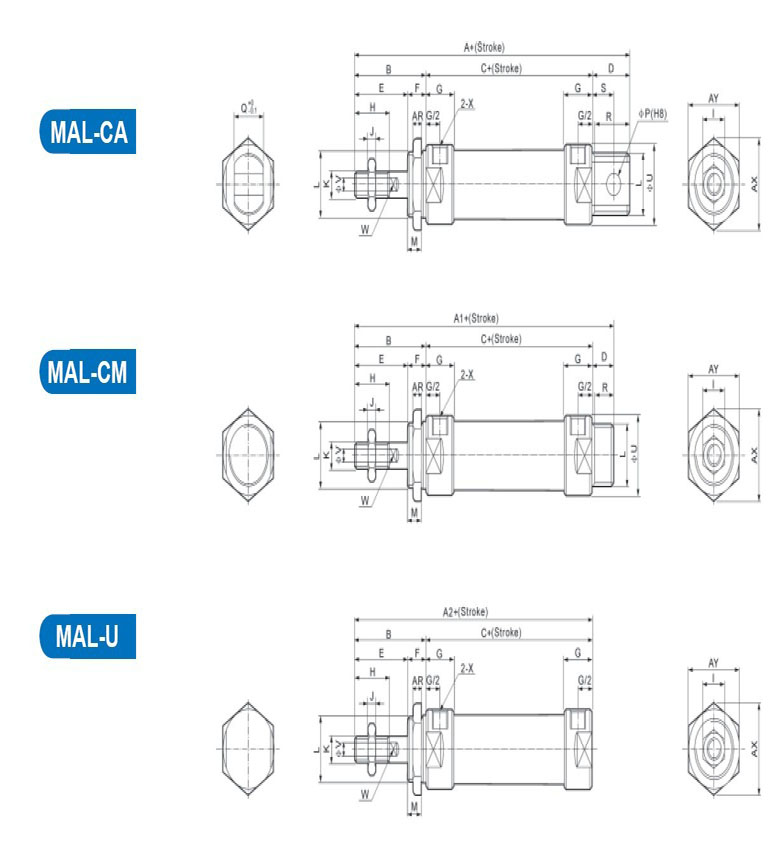

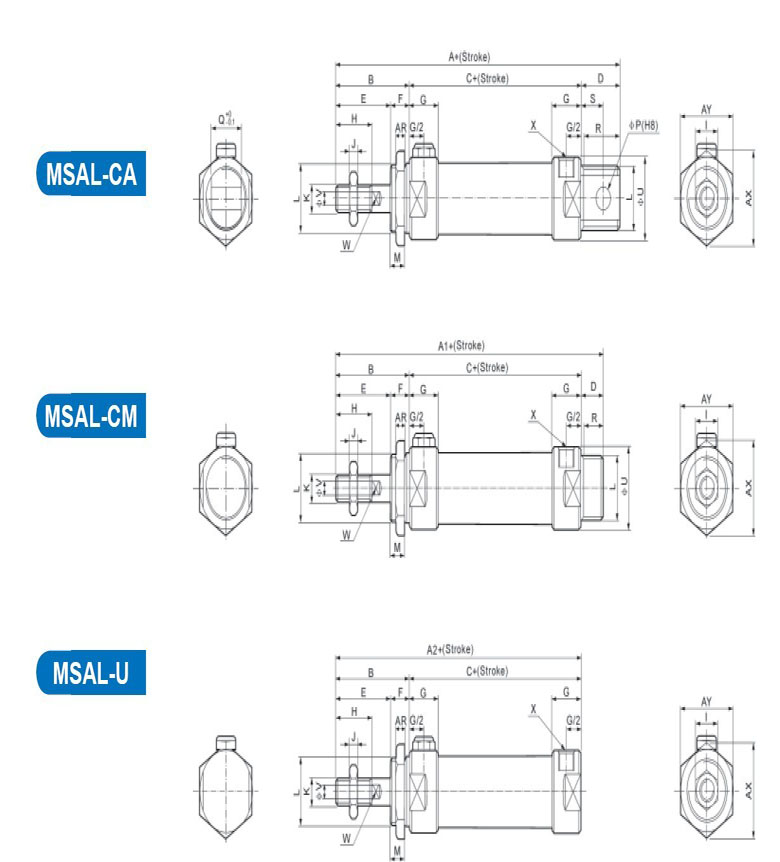

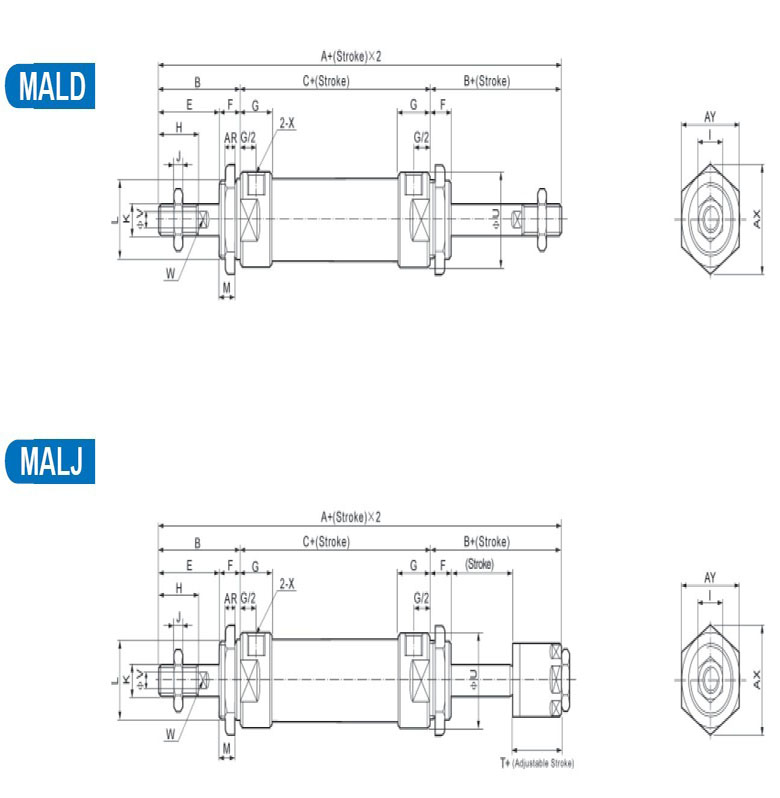

Dimensions
