Air Filter

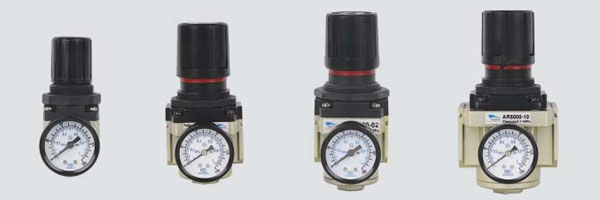

Regulator AR1000~5000 Series
Add to cart
Symbol

Ordering code
Specifications
  Fluid
Air
  Proof pressure
1.5MPa(15kgf/cm2)
  Max. operating pressure
1.0MPa(10kgf/cm2)
  * Set pressure range
AR1000: 0.05~0.7MPa (0.5~7kgf/cm2)
AR2000กซ5000: 0.05~0.85MPa (0.5~8.5kgf/cm2)
  Ambient and fl uid temperature
5-60oC
  Regulator construction
Relieving type

* Set pressure range:0.02~0.2MPa (0.2~2kgf/cm2)

Model
Specifi cations
Accessories
*Rated fl ow
(L/min)
**Port size
(G)
Pressure gauge
port size
Weight
(kg)
Bracket
Pressure
gauge
AR1000-M5
100
M5
1/16
0.08
B120
G27-10-R1
AR2000-01
550
1/8
1/8
0.27
B220
G36-10-01
AR2000-02
1/4
AR2500-02
2000
1/4
1/8
0.27
B220
G36-10-01
AR2500-03
3/8
AR3000-02
2500
1/4
1/8
0.41
B320
AR3000-03
3/8
AR4000-03
6000
3/8
1/4
0.84
B420
G46-10-02
AR4000-04
1/2
AR4000-06
6000
3/4
1/4
0.94
AR5000-06
8000
3/4
1/4
1.19
AR5000-10
1

*Under the circumstance that the inlet pressure is 0.7MPa (7.1kgf/cm2)and the set pressure is 0.5MPa(5.1kgf/cm2)
** Rc and NPT port sizes are available.

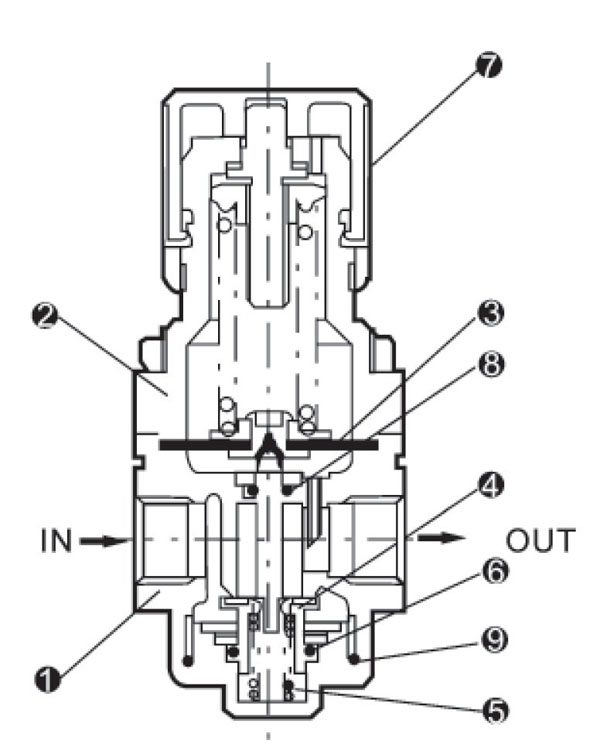

Construction
1

Component parts

NO.
  Description
Material
AR1000
AR2000 ~ 3000
AR4000 ~ 5000
1
 Body
Zinc die-cast
Aluminum die-cast
2
 Bonnet
Reinforced nylon
Aluminum die-cast
3
 Diaphragm assembly
NBR
4
 Valve assembly
Brass,NBR
5
 Spring
Stainless steel
6
 O-ring
NBR
7
 Hand wheel
Reinforced nylon
8
 O-ring
NBR
9
 O-ring
NBR



Model
Port size G
AR1000
M5
25
61.5
11
25
26
25
28
30
4.5
6.5
40
2
20.5
AR2000
1/8~1/4
40
95
17
40
56.8
30
34
44
5.4
15.4
55
2.3
33.5
AR2500
1/4~3/8
53
102.5
25
48
60.8
30
34
44
5.4
15.4
55
2.3
33.5
AR3000
1/4~3/8
53
127.5
35
53
60.8
39
40
46
6.5
8
53
2.3
42.5
AR4000
3/8~1/2
70
149.5
37.5
70
65.5
49.2
54
54
8.5
10.5
70
2.3
52.5
AR4000-06
3/4
75
154
40.5
70
69.5
49.2
54
55.5
8.5
10.5
70
2.3
52.5
AR5000
3/4~1
90
168
48
90
75.5
49.2
54
62
8.5
10.5
70
2.3
52.5
