Cylinder

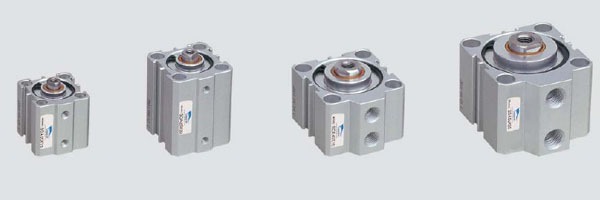

SDA Series Thin Type Cylinder
Add to cart
Symbol

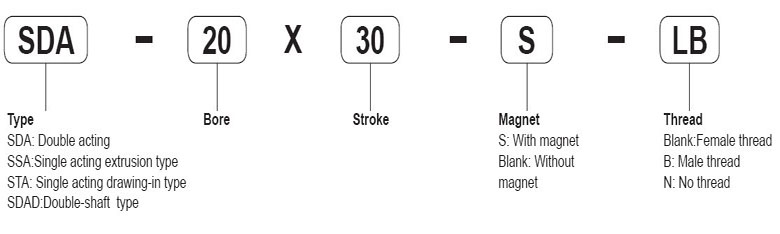

Ordering code

Specifications

Bore (mm)
12
16
20
25
32
40
50
63
80
100
Operation
Double acting
Single acting extrusion type Single acting drawing-in type
-
Fluid
Air
Operatinag
pressure
Double acting
1.0~9.0 Kgf/cm2
Single acting
2.0~9.0 Kgf/cm2
-
Proof pnessure
10.5 Kgf/cm2
Operating temperature
0~70oC
Operating
piston speed
Double acting
30~500 mm/s
30~350 mm/s
30~250 mm/s
Single acting
100~500 mm/s
-
Port size
M5×0.8
G1/8″
G1/4″
G3/8″
Stroke
Bore (mm)
12 16
20
25
32 40 50 63 80 100
Double
acting
Without
magnet
5~60 mm
Every 5mm is
grouped as one grade
5~85 mm
Every 5mm is
grouped as one grade
5~90 mm
Every 5mm is
grouped as one grade
100~110 mm
Every 5mm is
grouped as one grade
5~90 mm
Every 5mm is
grouped as one grade
100~130 mm
Every 5mm is
grouped as one grade
With magnet
5~50 mm
Every 5mm is
grouped as one grade
5~75mm
Every 5mm is
grouped as one grade
5~90 mm
Every 5mm is
grouped as one grade
100mm
5~90 mm
Every 5mm is
grouped as one grade
100~120 mm
Every 5mm is
grouped as one grade
Single
acting
Without
magnet
5~30 mm
Every 5mm is grouped as one grade
5~30 mm
Every 5mm is
grouped as one grade
-
With magnet
5~30 mm
Every 5mm is grouped as one grade
5~30 mm
Every 5mm is
grouped as one grade
-
Max. Stroke
60mm
100mm
120mm
130mm



Type
Standard type
With magnet
B
E
F
G
K1
L
M
N1
N3
O
Bore / Symbol
A
B1
C
A
B1
C
12
22
5
17
32
5
27
-
6
4
1
M3×0.5
10.2
2.8
6.3
6
M50.8
16
24
5.5
18.5
34
5.5
28.5
-
6
4
1.5
M3×0.5
11
2.8
7.3
6.5
M50.8
20
25
5.5
19.5
35
5.5
29.5
36
8
4
1.5
M4×0.7
16
2.8
7.5
-
M50.8
25
27
6
21
37
6
34
42
10
4
2
M5×0.8
17
2.8
8
-
M50.8
32
31.5
7
24.5
41.5
7
34.5
50
12
4
3
M6×1
22
2.8
9
-
G1/8
40
33
7
26
43
7
36
58.5
12
4
3
M8×1.25
28
2.8
10
-
G1/8
50
37
9
28
47
9
38
71.5
15
5
4
M10×1.5
38
2.8
10.5
-
G1/4
63
41
9
32
51
9
42
84.5
15
5
4
M10×1.5
40
2.8
11.8
-
G1/4
80
52
11
41
62
11
51
104
15
6
5
M14×1.5
45
4
14.5
-
G3/8

63
12
51
73
12
61
124
18
7
5
M18×1.5
55
4
20.5
-
G3/8




Bore / Symbol
P1
P3
P4
R
S
T1
T2
U
V
W
X
Y
12
Double side:φ6.5 Thread : M5×0.8 Through hole:φ4.2
12
4.5
-
25
16.2
23
1.6
6
5
-
-
16
Double side:φ6.5 Thread : M5×0.8 Through hole:φ4.2
12
4.5
-
29
19.8
28
1.6
6
5
-
-
20
Double side:φ6.5 Thread : M5×0.8 Through hole:φ4.2
14
4.5
2
34
24
-
2.1
8
6
11.3
10
25
Double side:φ8.2 Thread : M6×1.0 Through hole:φ4.6
15
5.5
2
40
28
-
3.1
10
8
12
10
32
Double side:φ8.2 Thread : M6×1.0 Through hole:φ4.6
16
5.5
6
44
34
-
2.15
12
10
18.3
15
40
Double side:φ10  Thread : M8×1.25Through hole:φ6.5
20
7.5
6.5
52
40
-
2.25
16
14
21.3
16
50
Double side:φ11  Thread : M8×1.25Through hole:φ6.5
25
8.5
9.5
62
48
-
4.15
20
17
30
20
63
Double side:φ11  Thread : M8×1.25Through hole:φ6.5
25
8.5
9.5
75
60
-
3.15
20
17
28.7
20
80
Double side:φ14  Thread : M12×1.75Through hole:φ9.2
25
10.5
10
94
74
-
3.65
25
22
36
26
100
Double side:φ17.5Thread : M12×1.75Through hole:φ11.3
30
13
10
114
90
-
3.65
32
27
35
26



Type
Standard type
With magnet
D
E
F
G
K1
L
M
N1
N3
Bore /Symbol
Stroke
A
B1
C
A
B1
C
≤10
>10
≤10
>10
≤10
>10
≤10
>10
12
32
42
5
27
37
42
52
5
37
47
-
6
4
1
M3×0.5
10.2
2.8
6.3
6
16
34
44
5.5
28.5
38.5
44
54
5.5
38.5
48.5
-
6
4
1.5
M3×0.5
11
2.8
7.3
6.5
20
35
45
5.5
29.5
39.5
45
55
5.5
39.5
49.5
36
8
4
1.5
M4×0.7
16
2.8
7.5
-
25
37
47
6
34
41
47
57
6
41
51
42
10
4
2
M5×0.8
17
2.8
8
-
32
41.5
51.5
7
34.5
44.5
51.5
61.5
7
44.5
54.5
50
12
4
3
M6×1
22
2.8
9
-
40
43
53
7
36
46
53
63
7
46
56
58.5
12
4
3
M8×1.25
28
2.8
10
-




Bore /Symbol
O
P1
P3
P4
R
S
T1
T2
U
V
W
X
Y
12
M5×0.8
Double Side:φ6.5Threed : M5×0.8 Through Hole:φ4.2
12
4.5
-
25
16.2
23
1.6
6
5
-
-
16
M5×0.8
Double Side:φ6.5 Threed : M5×0.8 Through Hole:φ4.2
12
4.5
-
29
19.8
28
1.6
6
5
-
-
20
M5×0.8
Double Side:φ6.5 Threed : M5×0.8 Through Hole:φ4.2
14
4.5
2
34
24
-
2.1
8
6
11.3
10
25
M5×0.8
Double Side:φ8.2 Threed : M6×1.0 Through Hole:φ4.6
15
5.5
2
40
28
-
3.1
10
8
12
10
32
G1/8
Double Side:φ8.2 Threed : M6×1.0 Through Hole:φ4.6
16
5.5
6
44
34
-
2.15
12
10
18.3
15
40
G1/8
Double Side:φ10 Threed : M8×1.25 Through Hole:φ6.5
20
7.5
6.5
52
40
-
2.25
16
14
21.3
16

Bore / Symbol
B2
E
F
G
H
I
J
K2
L
M
V
W
12
17
16
4
1
10
8
4
M5×0.8
10.2
2.8
6
5
16
17.5
16
4
1.5
10
8
4
M5×0.8
11
2.8
6
5
20
20.5
19
4
1.5
13
10
5
M6×1.0
16
2.8
8
6
25
23
21
4
2
15
12
6
M10×1.25
17
2.8
10
8
32
25
22
4
3
15
17
6
M14×1.5
22
2.8
12
10
40
35
32
4
3
25
19
8
M18×1.5
28
2.8
16
14
50
37
33
5
4
25
27
11
M18×1.5
38
2.8
20
17
63
37
33
5
4
25
27
11
M22×1.5
40
2.8
20
17
80
44
39
6
5
30
32
13
M22×1.5
45
4
25
22
100
50
45
7
5
35
36
13
M26×1.5
55
4
32
27

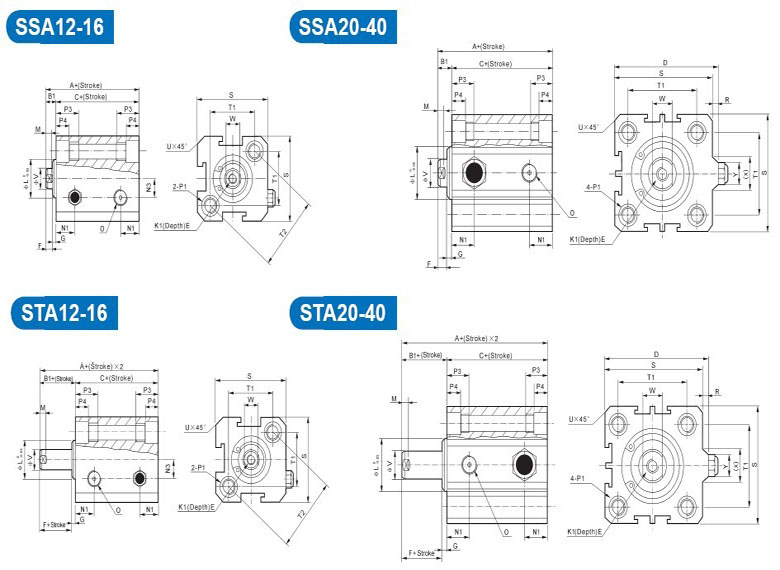

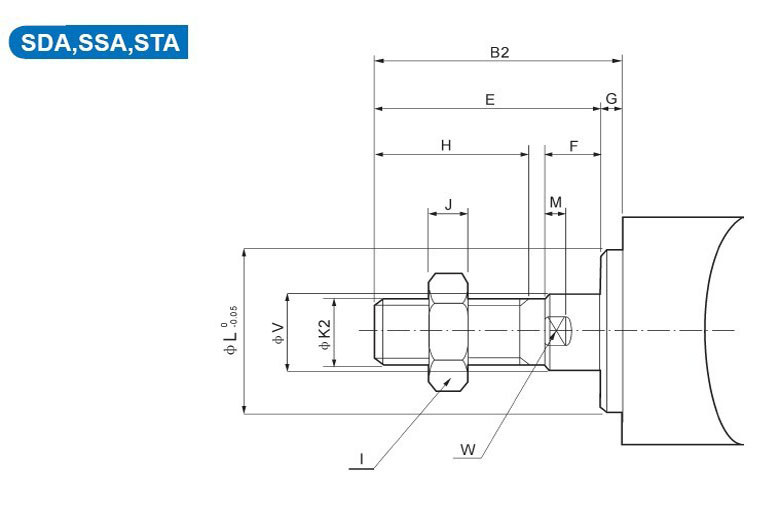

Dimensions
