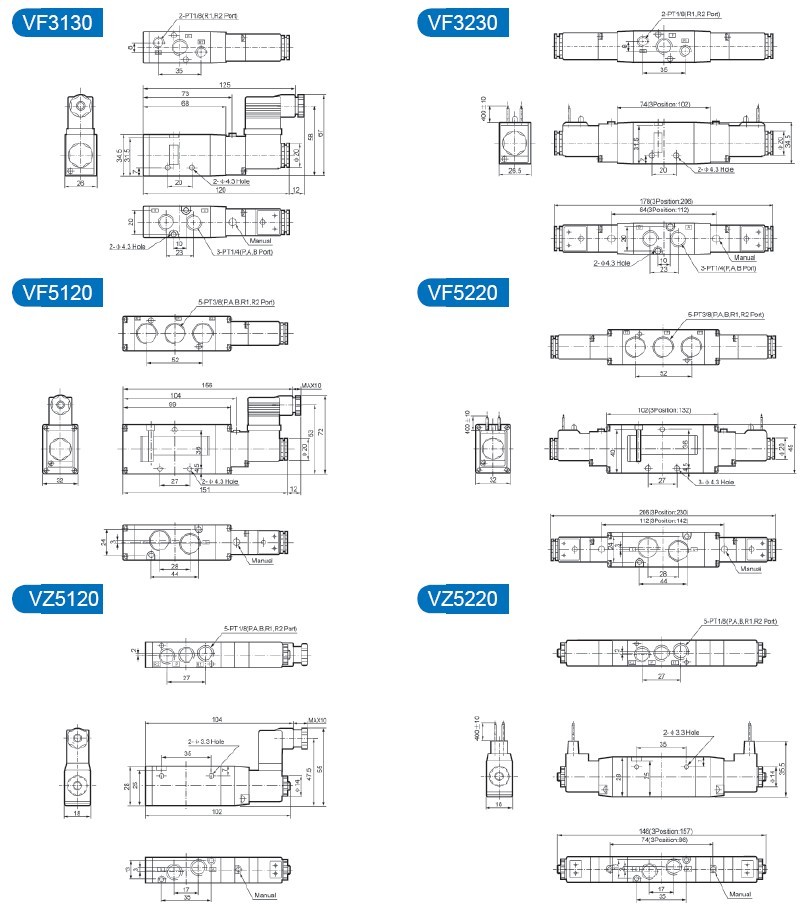

Model

VF3130

VF3230

VF33(4/5)30

VF5120

VF5220

VF53(4/5)50

VZ5120

VZ5220

VZ53(4/5)50

Position and way NO.

5/2 way

5/3 way

5/2 way

5/3 way

5/2 way

5/3 way

Effective area

16mm2(CV=0.89)

12mm2(CV=0.67)

25mm2(CV=1.40)

18mm2(CV=1.00)

12mm2(CV=0.67)

9mm2(CV=0.50)

Fluid

40 micron fi ltered air

Operation

Inside pilot type

Operating pressure

0.15~0.8MPa

Proof pressure

1.2MPa

Operating temperature

5~50^oC

Allowable voltage

±10% of rated voltage

Power consumption

AC: 4.5VA DC: 3W

Coil insulation & protection grade

Class F. IP65

Electrical entry

Lead wire or connector type

Highest action frequency

5 cycle / second

Shortest excitation time

0.05 second
